| SOS Rudder Pacific |
Emergency rudder for yachts that already use a Windpilot Pacific |
| SOS Rudder Solo |
Emergency rudder for yachts that do not already use a Windpilot |
|
|
| Technical details: |
rudder blade depth freely adjustable |
|
|
|
rudder bearings freely adjustable |
|
|
|
tiller freely adjustable |
|
|
|
smart grip hooks for rapid installation |
|
|
|
Teflon bearings |
|
|
|
unlimited installation options |
|
|
|
auxiliary rudder can be removed from shaft |
|
|
|
tiller can be removed from shaft |
|
|
|
buoyant rotomoulded polyethylene rudder |
|
|
| Available in two sizes: |
|
|
|
| SOS Rudder Pacific I |
< 40 feet |
| SOS Rudder Pacific II |
< 60 feet |
|
|
| SOS Rudder Solo I |
< 40 Fuss |
| SOS Rudder Solo II |
< 60 Fuss |
|
|
| Weight: |
23 - 30 kg |
|
|

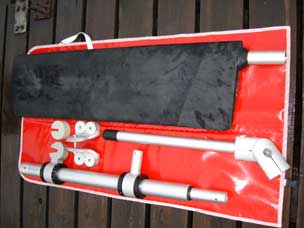

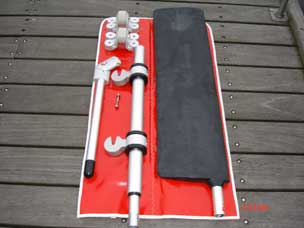

| Rudder bag |
130 x 40 x 20 cm |
|
|
|
|
| Initial installation: |
|
|
|
| SOS Rudder Pacific |
attach at the top using existing Pacific bracket |
|
attach at the bottom using extra bracket and quick-engage grip hook |
|
remove and store below deck in rudder bag when not in use |
|
upper bracket used for Pacific in normal operation |
|
lower bracket securely blocked in normal operation using the blank |
|
|
| SOS Rudder Solo |
attach top and bottom using two brackets and quick-fit grip hooks |
|
remove and store below deck in rudder bag when not in use |
|
both brackets securely blocked in normal operation using the blanks |
|
|
| SOS Rudder operation: |
|
|
|
| SOS Rudder Pacific |
remove Pacific from its mounting bracket |
|
remove the blank from the lower bracket |
|
mount the SoS rudder on the upper and lower brackets |
|
tighten the two bolts at the top and the one at the bottom |
|
ready to go! |
|
|
| SOS Rudder Solo |
remove the blanks from the two brackets |
|
mount the SoS rudder by latching the grip hooks onto the brackets |
|
tighten the two bolts |
|
ready to go! |
